NetCDF into Raster using ArcGIS

-

NetCDF into Raster using ArcGIS


If you do not have expertise in coding- language, and want to visualize the NetCDF over the GIS platform

The simple procedure is to convert

the

NetCDF into Raster using

ArcGIS


See how ??

Requirements

1: NetCDF file

2: Arc Map in your system

Steps to convert netcdf into raster

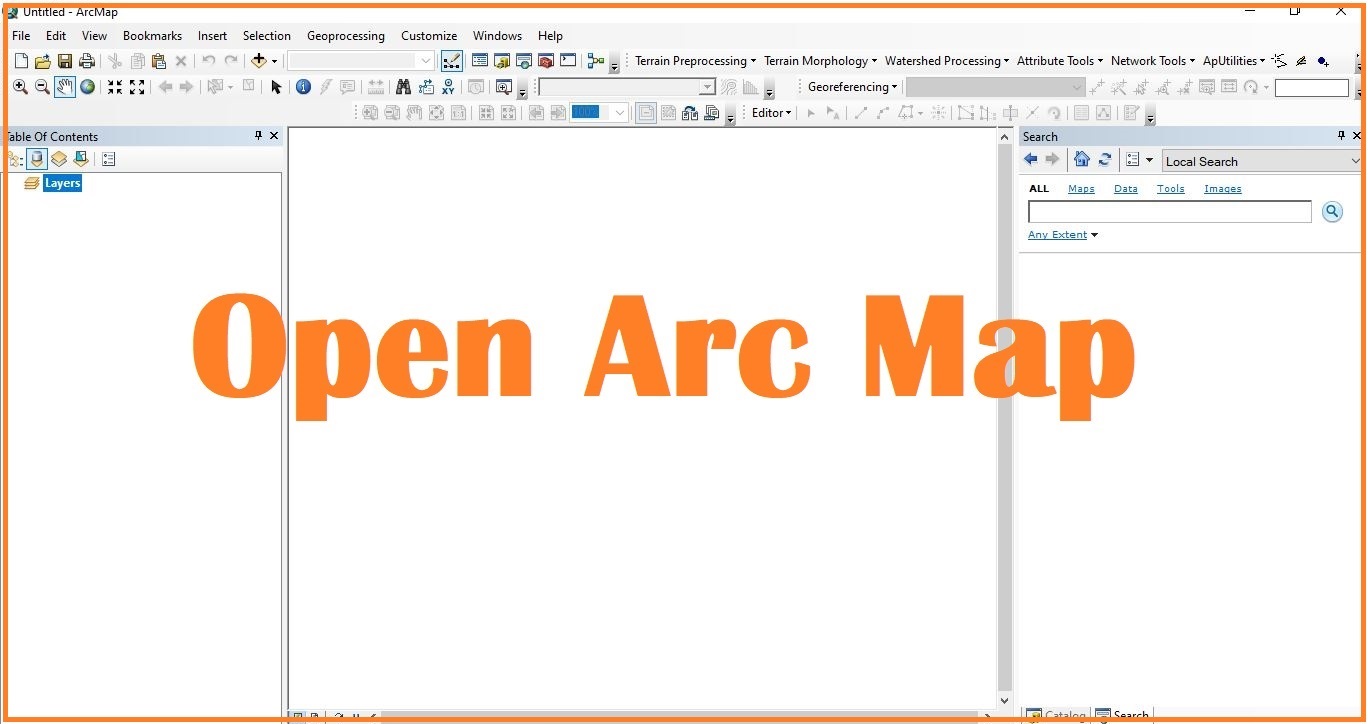

1-Open ArcMap


2-Open Search command in Arc-map


3-Type  NetCDF



4- Open and Fill the information of NC file in Make NetCDF Raster Layer
So see how to fill ??

      In Make NetCDF Raster Layer, there are 7 options to fill as

1: input NC file: open the NC file from your folder

2: variable: It will be variable like temp/cprat

3: X dimension: Select Lon

4: y diminution: Select Lat

5: output raster layer: save the file, give any name you want.

6: Band dimension: Left it

7: Dimension value: Left it

Finally click ok to proceed….

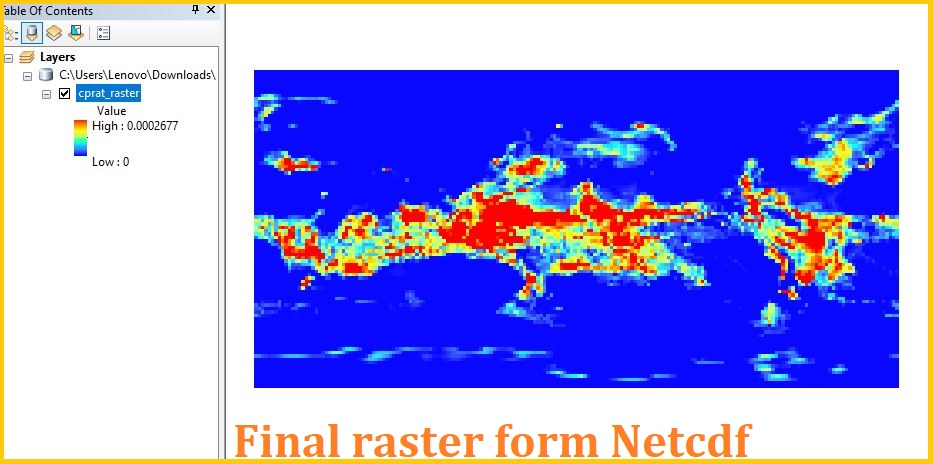

And your raster file will be open in Arc Map as given below..



Thanks for reading.

Kindly share to explore the Knowledge among the people.
